Overcoming Impossible Odds: The Story of the Golden Gate Bridge

In the mid 1930s, two familiar spires towered above the morning fog, stretching 227 meters into the sky, these 22,000 tonne towers would help support California's Golden Gate Bridge. Since they were currently in Pennsylvania, they first had to be dismantled, packaged, and shipped piece by piece, over 4,500 kilometers away. Moving the bridge's towers across a continent was just one of the challenges facing Charles Ellis and Joseph Strauss, the project's lead engineers.

Key Takeaways

• The Golden Gate Bridge faced opposition from military, ferry companies, and residents before construction began.
• The strait's extreme weather and seismic risks made the project seem impossible.
• Joseph Strauss's initial cantilever design was later changed to a suspension bridge due to engineering innovations.

Even before construction began, the pair faced all kinds of opposition. The military feared the bridge would make the important harbor and even more vulnerable target. Ferry companies claimed the bridge would steal their business, and residents wanted to preserve the area's natural scenery. For still, many engineers thought the project was impossible. The Golden Gate Strait was home to 96 kilometers per hour winds, swirling ties, an endless blanket of fog, and the earthquake prone San Andreas fault.

Key Engineering Innovations

• A suspension bridge design was adopted, allowing for greater flexibility and resilience to winds and seismic activity.
• Advanced steel manufacturing enabled the creation of strong, bundled wire cables for large-scale construction.
• The bridge was the longest and tallest suspension bridge ever attempted at the time.

But Strauss' initial plans to span the Strait used a cantilever bridge. This kind of bridge consists of a single beam anchored at one end and extended horizontally like a diving board. Since these bridges can only extend so far before collapsing under their own weight, Strauss' design used two cantilevers, linked by a structure in the middle.

However, Ellis and his colleague Leon Moysig convinced Strauss to pursue a different approach, the Suspension Bridge. Where a cantilever bridge is supported from one end, a suspension bridge suspends its deck from cables strung across the gap. The result is a more flexible structure that's resilient to winds and shifting loads. This kind of design had long been used for small, rope bridges, and in the 1930s, advanced steel manufacturing could create cables of bundled wire to act as strong steel rope for large-scale construction.

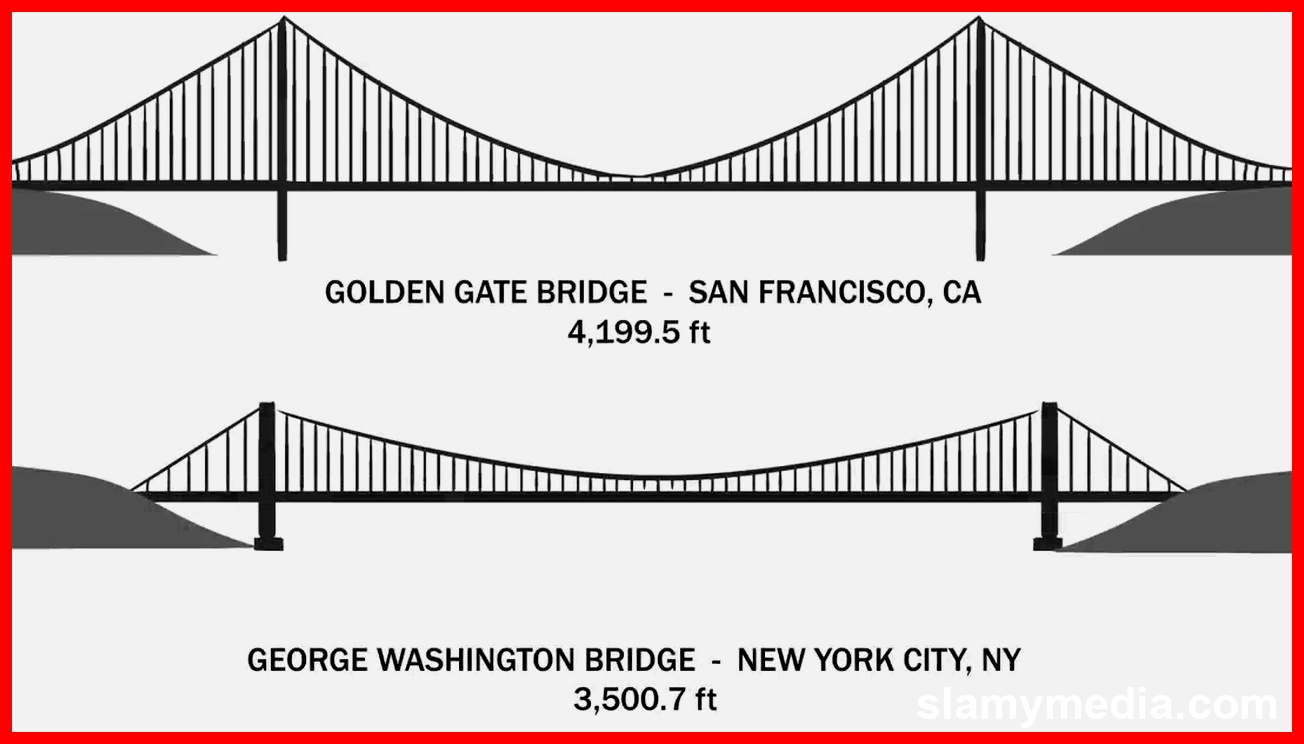

At the time, the Golden Gate Bridge was the longest and tallest suspension bridge ever attempted, and its design was only possible due to these innovations. But cables and towers of this size could only be built at large steelworks on the country's east coast. While the recently completed Panama Canal made it possible to ship these components to California, reassembling the towers on site didn't go quite as smoothly. It was relatively easy to find a stable shallow foundation for the north tower, but building the south tower essentially required erecting a ten-story building underwater.

Since the straits depth prevented them drilling or digging the foundations, bombs were dropped on the ocean floor creating openings for pouring concrete. A seawall was built to protect the site from powerful currents, and workers operated in 20-minute shifts between tides. The towers had so many compartments that each worker carried a set of plans to prevent getting lost, and at one point an earthquake rocked the south tower nearly five meters in each direction. Strauss took worker safety very seriously, requiring hard hats at all times and stretching a safety net below the towers. But not even these precautions could prevent an entire scaffolding platform from falling in 1937, carrying ten workers to their deaths.

Once the towers were complete, workers spun the cables in place, hung suspenders at 50-foot intervals, and laid down the concrete roadway. The bridge was finished, but there was still one more task ahead, painting it. After production, the steel had been coated with a reddish-paint primer it maintained throughout construction, but the Navy had been pushing hard to paint the bridge a tactical black and yellow.

"The Golden Gate Bridge is not just a structure, but a symbol of human ingenuity and perseverance." - Consulting architect Irving Morrow

Consulting architect Irving Morrow actually thought the primer itself paired nicely with the straits natural backdrop, and he wasn't alone. Sighting numerous letters from locals, Morrow's 3
